Golf Simulator Projectors: Choosing the Right One for You

     With advancements in technology, the world of golf simulator projectors has changed dramatically. There is now a wide range of options available, each with its own set of features and specifications. Fear not, we’ll break down the most important features you should consider when selecting a projector for your golf simulator.

Throw Ratio

     Throw ratio is the most important factor for a golf simulator projector because you must determine where you can mount a projector in your room, based on how wide your screen is going to be.  If you have a room that is constrained by size, this may limit your options on what projectors will work for your golf simulator.

     The throw ratio of a projector is the distance between the projector and the screen divided by the width of the projected image. In other words, it’s the relationship between the projector’s position and the size of the image it produces. A low throw ratio means the projector can be positioned close to the screen and still produce a large image. This is particularly useful for golf simulator setups where space is limited. When looking for a projector for your golf simulator, look for one with a throw ratio of 0.50:1 to 1.2:1, anything outside of this range can present an issue of casting a shadow (too far away) or be too close to the screen (hazard).

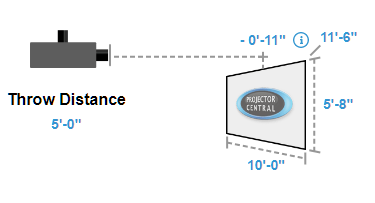

simulator projector throw ratio

This is an example of a short throw projector, with a throw ratio of 0.5:1.  If the screen is 10 feet wide, the projector lens needs to be 5 feet from the screen.

     Some projectors have a zoom lens that will provide a range of throw ratio, for example 1.2-1.35:1, giving you flexibility on distance to screen.

     The best resource for playing with dimensions, and finding the right projector is Projector Central, they have a great free tool to get quick dimensional layouts like the one above.

     Make sure to do your research before buying a projector for you golf simulator, its a very important component to your simulator experience.

ANSI Lumens

     ANSI lumens refer to the brightness of a projector. The higher the ANSI lumens, the brighter the image will be. A brighter image is particularly important if you will be using your golf simulator in a room with a lot of ambient light. A projector with an ANSI lumens rating of 3,000 or higher is recommended for golf simulator use.

ansi lumens golf simulator projector

1080p vs 4K

     1080p and 4K are terms used to describe the resolution of a projector. 1080p refers to a resolution of 1920×1080 pixels, while 4K refers to a resolution of 3840×2160 pixels. In general, 4K projectors offer sharper, more detailed images than 1080p projectors. However, 4K projectors can also be more expensive. For a golf simulator, a 1080p projector will provide a good image quality, but if you want the best image quality possible, consider a 4K projector.

     This also will be important based on the software you use, or the capability of your computer.  If you do not have a graphics card at the caliber of a RTX 3070 or better, 4K may not be useful to you.  If your simulation software doesn’t have 4K graphics capabilities, a 4K projector won’t make your experience any better.

     1080p is still very good, and will provide an immersive experience.  I play on a 16 foot wide simulator all the time with 1080p graphics and its still very fun.

     Just remember, a projector can be used for a home theater as well.  So if you have a multi use space, 4K is great for movies or sports as well.  Just make the best decision based on your budget.

Aspect Ratio

     The aspect ratio of a projector refers to the relationship between the width and height of the projected image. A common aspect ratio for golf simulators is 16:9, which is the same as a typical widescreen TV. However, some projectors also support a 16:10 or 4:3 aspect ratio.  4:3 is more suited to smaller simulator set-ups, where you don’t have a lot of width available for your screen. When choosing a projector for your golf simulator, consider what aspect ratio you need and make sure the projector you choose supports that aspect ratio.

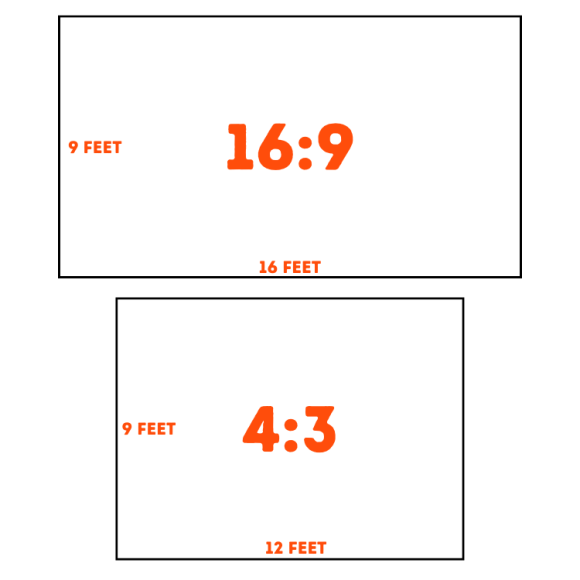

golf simulator aspect ratio

Lens Shift vs. Keystone Correction

     Keystone correction and lens shift are two features in projectors that allow you to make adjustments to the location and shape of the image or projection without having to move the projector or alter the angle of your screen.

     Keystone correction corrects the keystone effect which is when a projector projects an image that appears as a trapezoid because it is angled in relation to the screen. Keystone correction uses digital manipulation to alter the image to correct for this distortion. However, this digital manipulation can result in decreased resolution and image distortion.

     Lens shift, on the other hand, enables you to physically move the lens of the projector to adjust the location of the projection. This is useful if you cannot move the projector but need to adjust the projection to be centered on the screen. Some projectors have both vertical and horizontal lens shift capabilities, while others only have one or the other.

     Both keystone correction and lens shift can result in lower resolution and decreased image quality, so it is always best to try to position your projector and screen parallel to each other for optimal viewing. Additionally, the more levels of keystone correction or lens shift used, the more obvious the degradation in image quality will become.

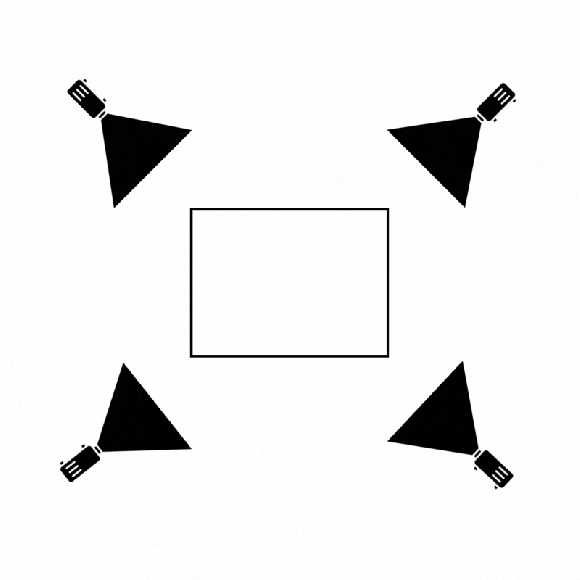

keystone correction
Keystone Correction

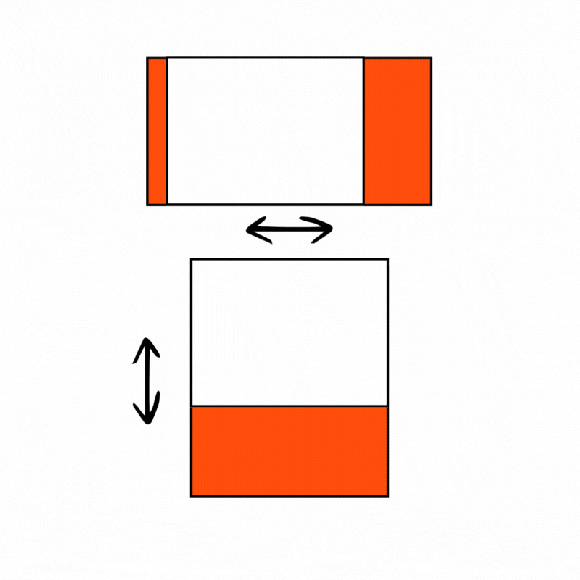

lens shift
Lens Shift

Price

     The price of golf simulator projectors can vary widely, from under $800 to several thousand dollars. When considering price, keep in mind that you get what you pay for. Cheaper projectors may have limited features and lower image quality, while more expensive projectors will offer better image quality and more advanced features.

     In conclusion, when choosing a golf simulator projector, it’s important to consider the throw ratio, ANSI lumens, resolution, aspect ratio, keystone correction, lens shift and price. By considering these factors, you can select the right projector for your golf simulator setup, ensuring you get the best possible experience.

Best Resource for Golf Simulator Projector Comparison – Projector Central – www.projectorcentral.com/projection-calculator-pro.cfm
